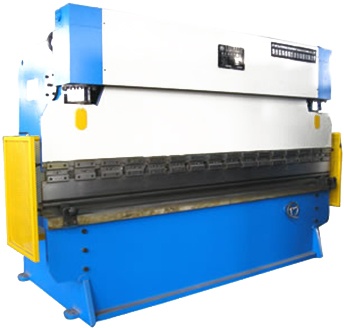

Italpleg WC67Y - 125/3200

Main Technical Data of WC67Y – 125/3200

Nominal pressure (KN)

Length of Working Table (mm)

Ram stroke (mm)

Amount of ram adjustment (mm)

Stroke of Number (mm)

Net Weight (kg)

Main power (mm)

Over Dimensions (mm)

1250

3200

120

100

8

8700

7.5

3240x1820x2430

Other models

Name specfication

nominal pressure (KN)

Length of Working Table (mm)

Ram stroke (mm)

Amount of ram adjustment (mm)

stroke of  umber (mm)

Net Weight (kg)

Main power (mm)

Over Dimensions (LxWxH) (mm)

WC67Y-40/2000

400

2000

100

80

11

3200

3

2025x1270x1800

WC67Y-40/2200

400

2200

100

80

11

3400

3

2350x1270x1800

WC67Y-50/3200

500

3200

100

80

11

4500

4

3225x1200x1300

WC67Y-63/2500

630

2500

100

80

10

4600

5.5

2530x1630x2160

WC67Y-63/3200

630

3200

100

80

10

5500

5.5

3230x1630x2360

WC67Y-80/3200

800

3200

100

75

8

6500

7.5

3240x1700x2300

WC67Y-80/4000

800

4000

100

75

8

7500

7.5

4040x1720x2300

WC67Y-100/3200

1000

3200

120

100

8

8200

7.5

3240x1720x2430

WC67Y-100/4000

1000

4000

120

100

8

10400

7.5

4040x1820x2430

WC67Y-125/4000

1250

4000

120

100

8

10800

7.5

4040x1820x2430

WC67Y-160/3200

1600

3200

200

160

8

11500

11

3240x1940x2660


Specification

Kn Nom Pressure

mm Length  of table

mm Distance between columns

Mm
Depth of throat

mm
Ram stroke

mm
Max open height between table/ ram

kw
Mitir Power

LxWxH
Dimension

kg
Net weigjt

180/3200

1800

3200

2700

250

100

450

11

3240/2160/2560

12800

180/4000

1800

4000

3300

320

120

450

15

4080/2200/2560

13600

200/3200

2000

3200

2700

320

200

450

15

3250/2270/2560

14800

200/4000

2000

4000

3300

320

200

560

15

4050/2535/2920

17300

250/3200

2500

3200

2700

400

250

560

15

4000/2270/2960

18400

250/4000

2500

4000

3300

400

250

560

15

4800/2250/2960

20000

250/5000

2500

5000

4100

400

250

560

15

5800/2250/2960

22000

250/6000

2500

6000

6250

400

250

560

15

7800/2250/3160

25000

320/4000

3200

4000

3300

400

250

560

22

4060/2570/3560

22000

320/5000

3200

5000

4300

400

250

560

22

5060/2570/3560

24510

400/4000

4000

4000

3100

400

320

625

37

4050/3240/3880

29950

400/5000

4000

5000

4210

400

320

625

37

5050/3240/3880

37000
