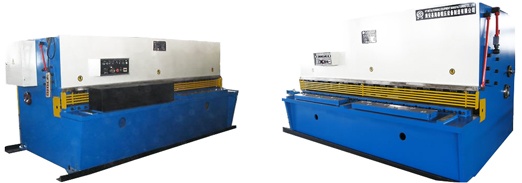

Technical Data for hydraulic swing shear of model QC12Y-6X3200
|
Type
|
Shear Size (TxW) (mm)
|
Shear Angle
|
Storkes
(time/min)
|
Adjustment Range Of Backgauge(mm)
|
Kw Motor Power
|
Kg N.Wt
|
Dimension (LxWxH) (mm)
|
|
QC12Y-6x3200
|
6x3200
|
1x30
|
18
|
20-600
|
7.5
|
7200
|
3840x1675x1620
|
Other Technical Data for hydraulic swing shear models
|
Type
|
Shear Size (TxW) (mm)
|
Shear Angle
|
Storkes (time/min)
|
Adjustment Range Of Backgauge (mm)
|
Kw Motor Power
|
Kg N.Wt
|
Dimension (LxWxH) (mm)
|
|
QC12Y-4x3200
|
4x3200
|
1x30
|
20
|
20-600
|
5.5
|
6500
|
3840x1675x1600
|
|
QC12Y-6x2500
|
6x2500
|
1x30
|
20
|
20-600
|
7.5
|
6100
|
3130x1530x1600
|
|
QC12Y-6x4000
|
6x4000
|
1x30
|
15
|
20-600
|
7.5
|
10000
|
4630x1850x1700
|
|
QC12Y-6x5000
|
6x5000
|
1x30
|
10
|
20-800
|
9
|
14000
|
5660x2050x1950
|
|
QC12Y-6x6000
|
6x6000
|
1x30
|
6
|
20-800
|
9
|
19000
|
6700x2200x1950
|
|
QC12Y-8x2500
|
8x2500
|
1x30
|
14
|
20-800
|
11
|
69000
|
3240x1675x1620
|
|
QC12Y-8x3200
|
8x3200
|
1x30
|
10
|
20-800
|
11
|
8000
|
3910x1675x1620
|
|
QC12Y-8x4000
|
8x4000
|
1x30
|
8
|
20-800
|
11
|
12000
|
4680x1850x1700
|
|
QC12Y-8x5000
|
8x5000
|
1x30
|
7
|
20-800
|
11
|
16500
|
5700x2050x1950
|
|
QC12Y-8x6000
|
8x6000
|
1x30
|
6
|
20-1000
|
15
|
22500
|
6850x2200x2230
|
|
QC12Y-10x2500
|
10x2500
|
1x30
|
12
|
20-800
|
15
|
8000
|
3200x2050x1950
|
|
QC12Y-10x3200
|
10x3200
|
1x30
|
10
|
20-800
|
15
|
9400
|
3950x1850x1950
|
|
QC12Y-10x4000
|
10x4000
|
1x30
|
8
|
20-800
|
15
|
13500
|
4680x2050x2230
|
|
QC12Y-10x5000
|
10x5000
|
1x30
|
7
|
20-800
|
18.5
|
19500
|
5750x2400x2350
|
|
QC12Y-10x6000
|
10x6000
|
1x30
|
6
|
20-1000
|
18.5
|
26000
|
6900x2400x2350
|
|
QC12Y-12x2500
|
12x2500
|
1x30
|
12
|
20-800
|
18.5
|
8600
|
3235x2050x1950
|
|
QC12Y-12x3200
|
12x3200
|
2x30
|
10
|
20-800
|
18.5
|
10000
|
3235x2050x1950
|
|
QC12Y-12x4000
|
12x4000
|
2x30
|
8
|
20-800
|
18.5
|
14500
|
3950x2200x2230
|
|
QC12Y-12x5000
|
12x5000
|
2x30
|
7
|
20-1000
|
22
|
21500
|
4700x2200x2230
|
|
QC12Y-12x6000
|
12x6000
|
2x30
|
6
|
20-1000
|
22
|
29500
|
5800x2600x2800
|
|
QC12Y-12x8000
|
12x8000
|
2x30
|
4
|
20-1000
|
45
|
55000
|
6950x2600x2800
|
|
|
|
QC12Y-16x2500
|
16x2500
|
2x30
|
8
|
20-800
|
18.5
|
15000
|
9100x3575x3150
|
|
QC12Y-16x3200
|
16x3200
|
2x30
|
7
|
20-800
|
22
|
18000
|
3410x2300x2230
|
|
QC12Y-16x4000
|
16x4000
|
2x30
|
6
|
20-800
|
22
|
24500
|
4120x2300x2230
|
|
QC12Y-20x2500
|
20x2500
|
2x30
|
8
|
20-800
|
37
|
17500
|
4920x2400x2700
|
|
QC12Y-20x3200
|
20x3200
|
2x30
|
7
|
20-800
|
37
|
25500
|
3420x2400x2700
|
|
QC12Y-20x4000
|
20x4000
|
2x30
|
6
|
20-800
|
37
|
33800
|
3420x2400x2700
|
|
QC12Y-20x2500
|
25x2500
|
2x30
|
8
|
20-800
|
45
|
24000
|
4180x2400x2700
|
|
QC12Y-20x3200
|
25x3200
|
2x30
|
7
|
20-800
|
45
|
32000
|
4980x2400x2700
|
|
QC12Y-20x4000
|
25x4000
|
2x30
|
6
|
20-800
|
45
|
39500
|
3480x2400x2700
|
|
QC12Y-32x2500
|
32x2500
|
3x
|
6
|
20-800
|
55
|
33000
|
4200x2500x2800
|
|
QC12Y-32x3200
|
32x3200
|
3x
|
6
|
20-800
|
55
|
40500
|
3760x3575x3150
|
|
QC12Y-40x2500
|
40x2500
|
3x
|
5
|
20-800
|
55
|
48000
|
5270x3575x3150
|
|
QC12Y-40x3200
|
40x3200
|
3x
|
4
|
20-800
|
55
|
65000
|
5970x3575x3150
|
